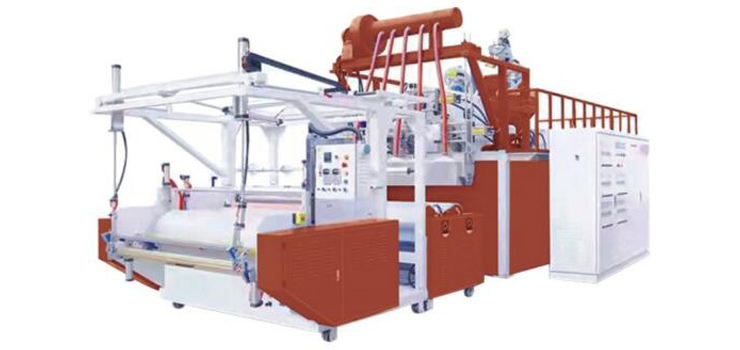

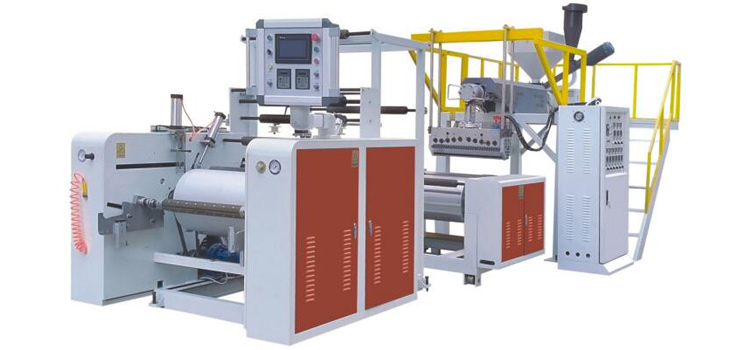

Multi Layer Cast Film Machine

RK-1000/1500/2000 Multi Layer Cast Film Machine uses PLC and quality transmission system to ensure the stableprocess of material feeding in and film coming out. Its coiling system isequipped with high precision servo driver and mechanical reloading arm.
  • Max.Film width: 1000mm
  • Max.output: 100kg/h
  • Max.Screw diameter: 80mm
  • Screw L/D ratio: 32:1

Description

Usage


The RUIKANG multi-layer cast film machine represents a remarkable innovation in the field of film production. This advanced piece of equipment offers a unique advantage in that each layer of the film it produces can be meticulously composed of diverse materials and formulations. This flexibility empowers manufacturers to create multi-layer films with enhanced physical properties that are tailored to meet specific application requirements. Whether it's for improved strength, better barrier capabilities, or enhanced flexibility, the machine provides the means to achieve the desired film characteristics.



One of the standout features of this machine is its ability to precisely adjust the specifications of each layer on demand. This level of customization allows for a high degree of versatility in film production. Manufacturers can fine-tune the thickness, composition, and other parameters of each layer, ensuring that the final product is optimized for its intended use.
Equipped with state-of-the-art extrusion and casting technologies, the RUIKANG multi-layer cast film machine guarantees the stability of the overall film quality. The extrusion process ensures a uniform and consistent flow of materials, while the casting technology contributes to the formation of a smooth and even film surface. These combined technologies work in harmony to produce films of exceptional quality and reliability.



The automated control system of the machine is another key aspect that sets it apart. It is capable of precisely controlling the temperature and stretching speed of the film throughout the production process. This precise control is crucial in determining the final properties of the film. By maintaining accurate temperature and stretching speed settings, the machine can produce films with consistent quality and performance. This not only reduces waste but also ensures that each batch of film meets the highest standards. In conclusion, the RUIKANG multi-layer cast film machine offers a comprehensive solution for the production of high-quality multi-layer films, making it an invaluable asset for industries that rely on advanced packaging materials.




RUIKANG multi-layer cast film machine, each layer can be composed of different materials and formulations to produce multi-layer film with better physical properties.

- The machine can adjust the specifications of each layer according to the demand.
- Equipped with extrusion technology and casting technology to ensure the overall quality of the film is stable.
- The automated control system can precisely control the temperature and stretching speed of the film.



Main Technical Variables



Model

1000

1500

2000

Screw diameter

55/70/55

65/90/65

70/1 00/70

Gear box

146/173/146

173/200/173

180/250/180

L/D

32:1

32:1

32:1

Motor power (kw)

15/55/15

22/37/22

22/55/22

Machine weight

6T

10T

16T

Machine total power

69kw

110kw

1 60kw

Machine dimension

7000x2600x2800mm

7500x3200x3200mm

8500x4200x3600mm



*We will no longer inform you if there is any data change
