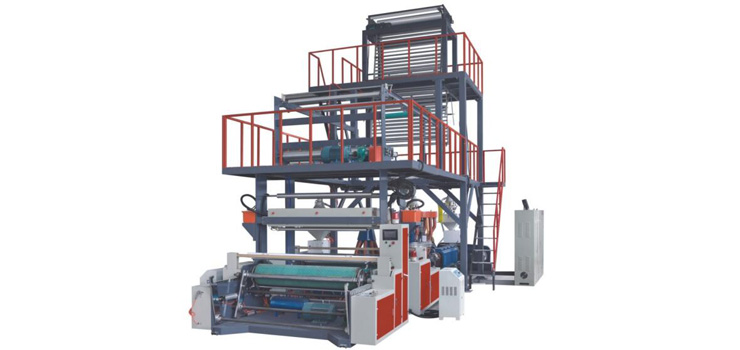

Ricon's Film Extrusion Machine is capable of producing 3-layer co-extruded plastic films which have better barrier properties, durability. Widely used in packaging and agricultural industries
- Molten plastic is blown into tubular film using air blowing technology.
- Cooling system to cure the plastic film and adjust the size of the film by means of a stretching device.
- High speed production of large quantities of film up to 45m/min.
|
Model |
RK3JS -50 |
RK3JS -55 |
RK3JS -65 |
|
Suitable Material |
HDPE/L DPE/LLDPE |
HDPE/LDPE/LLDPE |
HDPE/LDPE/LLDPE |
|
Film Width |
800-1 500mm |
1200- 2000mm |
1600-2500mm |
|
Film Thickness |
0.028-0.20mm |
0.028-0.20mm |
0.03-0.20mm |
|
Max Extrusion Output |
1 50kg/hr |
200kg/hr |
250kg/hr |
|
Extruder |
|
||
|
Screw Diameter |
Aφ50 Bφ55 Cφ 50 |
Aφ60 Bφ65 Cφ60 |
Aφ65 Bφ70 Cφ65 |
|
Screw UD Length |
30：1 |
30：1 |
30：1 |
|
Screw Material |
Sacm-645/38 Crmoala |
Sacm-645/38 Crmoala |
Sacm-645/38 Crmoala |
|
Cylinder Material |
Sacm-645/38 Crmoala |
Sacm-645/38 Crmoala |
Sacm-645/38 Crmoala |
|
Cylinder Cooling |
370wx2/3 |
370wx2/3 |
550wx3/3 |
|
Driving Motor |
15KWx2 18.5x1 |
22KWx1 18.5x2 |
22KWx2 30x1 |
|
Temperature Control |
3x3 |
3x3 |
4x3 |
|
Average Power-consume |
80kw |
95kw |
120kw |
|
Type of Die |
|
||
|
Die Size |
250/300mm |
400mm |
50mm |
|
Temperature Control |
4 |
4 |
4 |
|
Air Ring |
1 |
1 |
1 |
|
Air Blower |
7.5kw |
11kw |
15kw |
|
Take -upunit |
|
||
|
Roller Width |
φ165x1600 |
φ190x2100 |
φ190x2600 |
|
Take-up Speed |
5-60m/min |
5-45m/min |
5-45m/min |
|
Take-up Motor |
1.5kw |
2.2kw |
2.2kw |
|
Winding Unit |
|
||
|
Winding Motor |
1.5kw |
2.2kw |
4kw |
|
Winding Speed |
5- 60m/min |
5- 45m/min |
5- 45m/min |
|
Outine Diameter(LxWxH) |
9.5x4.5x7.5m |
10.5x5.0x9m |
11.5x5.5x10m |
*We will no longer inform you if there is any data change.
1. Auto L oader
2. Corona
3. Air Compressor
4. Mechanics Screen Changer
5. Automatic Winding
6. Mick W eight
7. Suction Material Machine
